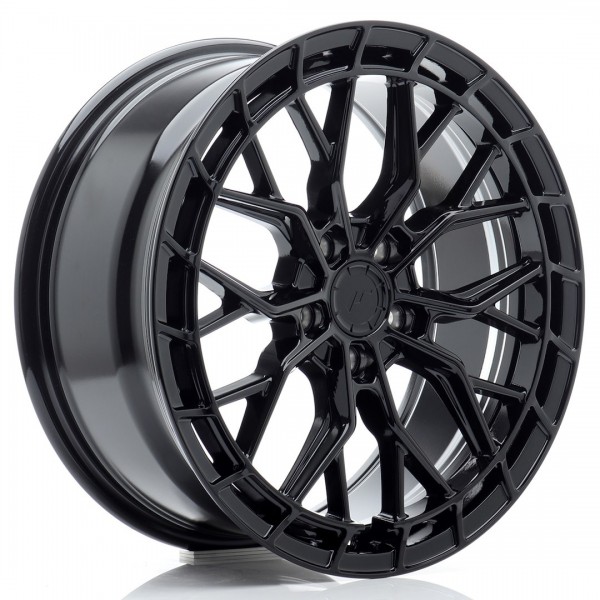

Set of 4 JR Wheels JR48 rims for the 2011–2015 Mercedes-Benz C-Class
Product details
JR Wheels JR48 Rims for the 2011–2015 Mercedes-Benz C-Class — 1 size, 1 finish
The JR Wheels JR48 are offered here in set of 4 rims for the 2011–2015 Mercedes-Benz C-Class, in 18" and in 1 finish. Center-to-center distance 5x112, direct mounting. Made of cast aluminum According to JWL and VIA standards, they offer an excellent balance of durability and value.
Compatibility with your 2011–2015 Mercedes-Benz C-Class
Versions compatible with this size
C 180 (2011–2012)C 180 CDI (2011–2014)C 200 (2011–2015)C 200 CDI (2011–2014)C 220 CDI (2011–2014)C 250 (2011–2015)C 250 CDI (2011–2015)C 300 CDI (2011–2014)C 350 (2011–2015)C 350 CDI (2011–2014)Why choose JR Wheels JR48 rims for your 2011–2015 Mercedes-Benz C-Class ?
- JWL/VIA-certified cast aluminum : proven durability for everyday use
- Nuts and centering rings included : The 4 rings (73.1 → 64.1 mm) and the mounting nuts are included in the set—no need to order anything extra
- 1 finish : Gloss Black
- 1 Approved Dimensions, 5x112 bolt pattern: direct mounting, without a spacer
- Sold in sets of 4, each wheel individually packaged and protected
Made of cast aluminum
Aluminum is cast into a mold and then machined: this is the most common process, and the one that offers the best strength-to-price ratio. Each wheel is inspected according to Japanese standards. JWL and VIA.
| Sizes available depending on your 2011–2015 Mercedes-Benz C-Class | |
|---|---|
| 18x8 ET45 | C 180 (2011–2012)C 180 CDI (2011–2014)C 200 (2011–2015)C 200 CDI (2011–2014)C 220 CDI (2011–2014)C 250 (2011–2015)C 250 CDI (2011–2015)C 300 CDI (2011–2014)C 350 (2011–2015)C 350 CDI (2011–2014) |
| Approval by Dimension | |
|---|---|
| 18x8 ET45 | JWL / VIA No TÜV report for this size |
| Technical Specifications for JR Wheels JR48 Rims | |
|---|---|
| Make / Model | JR Wheels JR48 |
| Manufacturing Process | Cast aluminum |
| Material | Lightweight aluminum alloy |
| Diameters | 18" |
| Dimensions | 18x8 ET45 |
| Center-to-center distance (PCD) | 5 x 112 mm |
| Center bore | 66.6 mm |
| Colors | Gloss Black |
| Screws and Bolts | Mounting nuts included |
| Centering | 4 centering rings (73.1 → 64.1 mm) included |
| Certifications | JWL / VIA |
| Packaging | Set of 4 rims |
| Shipping | Shipped separately from the rest of the order |
Certifications and Compliance
These rims are certified JWL and VIA, which ensure the rim's structural strength in accordance with Japanese standards. No TÜV report is currently available for this part number.
Installation: What to Expect
The order is delivered complete : 4 centering rings (73.1 → 64.1 mm) and mounting nuts are included. Allow 30 to 45 minutes for all four wheels using a jack and a torque wrench. Follow the torque specifications listed in your vehicle’s manual and retighten the fasteners after driving the first few kilometers.
Tire installation should be performed by a properly equipped shop, with a balance check after installation.
Shipping and Packaging
Each wheel is individually packaged, protected on both sides, and fully wrapped in plastic. This product is shipped separately from the rest of your order.
| The Various Manufacturing Methods | |||||
|---|---|---|---|---|---|
| Method | Method | Weight | Resistance | Price | Balancing |
| Casting JR48 | Aluminum cast in a mold | ★★☆☆☆ | ★★☆☆☆ | ★★★★★ | ★★☆☆☆ |
| Flow Forming | Aluminum cast, then heated and machine-drawn | ★★★★☆ | ★★★☆☆ | ★★☆☆☆ | ★★★☆☆ |
| Semi-Forged | Machined-from-solid front panel + cast bowl | ★★★★★ | ★★★★☆ | ★★☆☆☆ | ★★★★☆ |
| Forged | Wheel fully machined from solid material | ★★★★★ | ★★★★★ | ★☆☆☆☆ | ★★★★★ |
Frequently Asked Questions
Are cast aluminum wheels reliable ?
Yes. This is the most common process, including for original equipment. JWL and VIA certifications validate the rim's performance in impact, bending, and fatigue tests.
What size should I choose for my 2011–2015 Mercedes-Benz C-Class ?
The size chart above lists the compatible versions and model years for each size. Select the size that matches your vehicle from the drop-down menu, then select the trim level.
Should I order nuts, washers, or spacers ?
No. The mounting nuts and the 4 centering rings (73.1 → 64.1 mm) are included in the set.
Are the tires and pressure sensors included ?
No, this set includes only the 4 rims.
General
- Brand JAPAN RACING
- Reference JR481880F15L4566GB
Specific references
- ean13: 5906871102438
