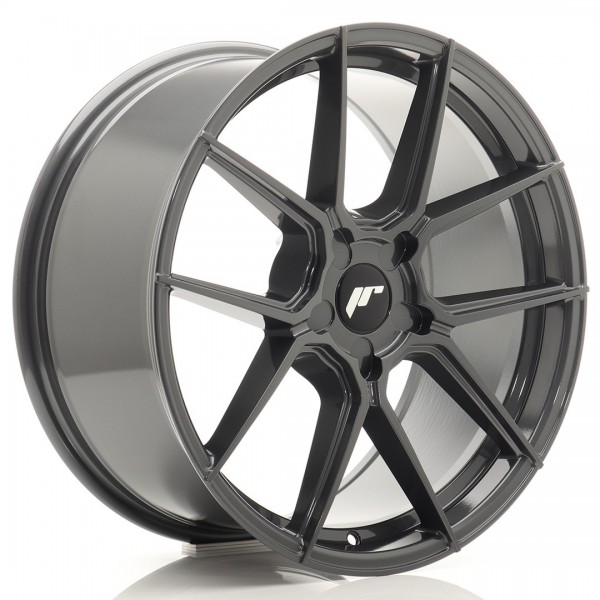

Set of 4 JR Wheels JR30 Rims for the 2015–2018 BMW 7 Series
Product details
JR Wheels JR30 Rims for the 2015–2018 BMW 7 Series — 4 sizes, 6 finishes
The JR Wheels JR30 are offered here in set of 4 rims for the 2015–2018 BMW 7 Series, in 19" · 20" and in 6 finishes. Center-to-center distance 5x112, direct mounting. Made of cast aluminum According to JWL and VIA standards, they offer an excellent balance of durability and value.
Compatibility with your 2015–2018 BMW 7 Series
Versions compatible with this size
725Ld (2015–2018)725d (2015–2018)730Ld (2015–2018)730Ld xDrive (2015–2018)730Li (2016–2018)730d (2015–2018)730d xDrive (2015–2018)730i (2016–2018)740Ld xDrive (2015–2018)740Le (2016–2018)740 xDrive (2016–2018)740Li (2015–2018)740Li xDrive (2016–2018)740d xDrive (2015–2018)740th (2016–2018)740i (2015–2018)750Ld xDrive (2016–2018)750Li (2015–2018)750Li xDrive (2015–2018)750d xDrive (2016–2018)750i (2015–2018)750i xDrive (2015–2018)Why choose JR Wheels JR30 rims for your 2015–2018 BMW 7 Series ?
- JWL/VIA-certified cast aluminum : proven durability for everyday use
- Nuts and centering rings included : The 4 rings (73.1 → 64.1 mm) and the mounting nuts are included in the set—no need to order anything extra
- 6 finishes : Black Machined · Gloss Black · Matte Bronze · Hyper Gray · Silver Machined Face · Silver Machined
- 4 approved sizes, 5x112 bolt pattern: direct mounting, without a spacer
- Sold in sets of 4, each wheel individually packaged and protected
Made of cast aluminum
Aluminum is cast into a mold and then machined: this is the most common process, and the one that offers the best strength-to-price ratio. Each wheel is inspected according to Japanese standards JWL and VIA.
| Sizes available depending on your 2015–2018 BMW 7 Series | |
|---|---|
| 19x8.5 ET21 | 725Ld (2015–2018)725d (2015–2018)730Ld (2015–2018)730Ld xDrive (2015–2018)730Li (2016–2018)730d (2015–2018)730d xDrive (2015–2018)730i (2016–2018)740Ld xDrive (2015–2018)740Le (2016–2018)740 xDrive (2016–2018)740Li (2015–2018)740Li xDrive (2016–2018)740d xDrive (2015–2018)740th (2016–2018)740i (2015–2018)750Ld xDrive (2016–2018)750Li (2015–2018)750Li xDrive (2015–2018)750d xDrive (2016–2018)750i (2015–2018)750i xDrive (2015–2018) |
| 19x8.5 ET25 | 725Ld (2015–2018)725d (2015–2018)730Ld (2015–2018)730Ld xDrive (2015–2018)730Li (2016–2018)730d (2015–2018)730d xDrive (2015–2018)730i (2016–2018)740Ld xDrive (2015–2018)740Le (2016–2018)740 xDrive (2016–2018)740Li (2015–2018)740Li xDrive (2016–2018)740d xDrive (2015–2018)740th (2016–2018)740i (2015–2018)750Ld xDrive (2016–2018)750Li (2015–2018)750Li xDrive (2015–2018)750d xDrive (2016–2018)750i (2015–2018)750i xDrive (2015–2018) |
| 19.0" — set of 2 front tires 19.0x8.5 ET25 + 2 rear tires 19.0x9.5 ET39 | 725Ld (2015–2018)Set of 2 front + 2 rear |
| 20.0" — set of 2 front tires 20.0x8.5 ET25 + 2 rear tires 20.0x10 ET41 | 725Ld (2015–2018)Set of 2 front + 2 rear |
| Approval by Dimension | |
|---|---|
| 19x8.5 ET21 | TÜV-certified View the certificate (PDF) |
| 19x8.5 ET25 | TÜV-certified View the certificate (PDF) |
| 19.0" — set of 2 front tires 19.0x8.5 ET25 + 2 rear tires 19.0x9.5 ET39 | TÜV-certified View the certificate (PDF) · Rear Axle Certificate (PDF) |
| 20.0" — set of 2 front tires 20.0x8.5 ET25 + 2 rear tires 20.0x10 ET41 | TÜV-certified View the certificate (PDF) |
Offset wheel setup: 2 front rims + 2 rear rims
On some models, the front and rear wheels are not the same size. Sets marked “2 front + 2 rear” are delivered as a complete set, with two rims of each size: they are not interchangeable between axles.
| Technical Specifications for JR Wheels JR30 Rims | |
|---|---|
| Make / Model | JR Wheels JR30 |
| Manufacturing Process | Cast aluminum |
| Material | Lightweight aluminum alloy |
| Diameters | 19" · 20" |
| Dimensions | 19x8.5 ET21 19x8.5 ET25 19.0" — set of 2 front tires 19.0x8.5 ET25 + 2 rear tires 19.0x9.5 ET39 20.0" — set of 2 front tires 20.0x8.5 ET25 + 2 rear tires 20.0x10 ET41 |
| Center-to-center distance (PCD) | 5 x 112 mm |
| Center bore | 72.6 mm |
| Colors | Black Machined · Gloss Black · Matte Bronze · Hyper Gray · Silver Machined Face · Silver Machined |
| Screws and Bolts | Mounting nuts included |
| Centering | 4 centering rings (73.1 → 64.1 mm) included |
| Certifications | JWL / VIA |
| Packaging | Set of 4 rims |
| Shipping | Shipped separately from the rest of the order |
Certifications and Compliance
These rims are certified JWL and VIA, which ensure the rim's structural strength in accordance with Japanese standards. All available sizes also come with a TÜV certificate. : The corresponding certificate can be downloaded from the “Approval by Dimension” table above.
Installation: What to Expect
The order is delivered complete : 4 centering rings (73.1 → 64.1 mm) and mounting nuts are included. Allow 30 to 45 minutes for all four wheels using a jack and a torque wrench. Follow the torque specifications listed in your vehicle’s manual and retighten the fasteners after driving the first few kilometers.
Tire installation should be performed by a properly equipped shop, with a balance check after installation.
Shipping and Packaging
Each wheel rim is individually packaged, protected on both sides, and fully wrapped in plastic. This product is shipped separately from the rest of your order.
| The Various Manufacturing Methods | |||||
|---|---|---|---|---|---|
| Method | Method | Weight | Resistance | Price | Balancing |
| Casting JR30 | Aluminum cast in a mold | ★★☆☆☆ | ★★☆☆☆ | ★★★★★ | ★★☆☆☆ |
| Flow Forming | Aluminum cast, then heated and machine-drawn | ★★★★☆ | ★★★☆☆ | ★★☆☆☆ | ★★★☆☆ |
| Semi-Forged | Machined-from-solid front panel + cast bowl | ★★★★★ | ★★★★☆ | ★★☆☆☆ | ★★★★☆ |
| Forged | Wheel fully machined from solid material | ★★★★★ | ★★★★★ | ★☆☆☆☆ | ★★★★★ |
Frequently Asked Questions
Are cast aluminum wheels reliable ?
Yes. This is the most common process, including for original equipment. JWL and VIA certifications validate the rim's performance in impact, bending, and fatigue tests.
What size should I choose for my 2015–2018 BMW 7 Series ?
The size chart above lists the compatible versions and model years for each size. Select the size that matches your vehicle from the drop-down menu, then select the trim level.
Should I order nuts, washers, or spacers ?
No. The mounting nuts and the 4 centering rings (73.1 → 64.1 mm) are included in the set.
Are the tires and pressure sensors included ?
No, this set includes only the 4 rims.
General
- Brand JAPAN RACING
- Reference JR301985F15L2172HG1
Specific references
- ean13: 5906871144094
